Description

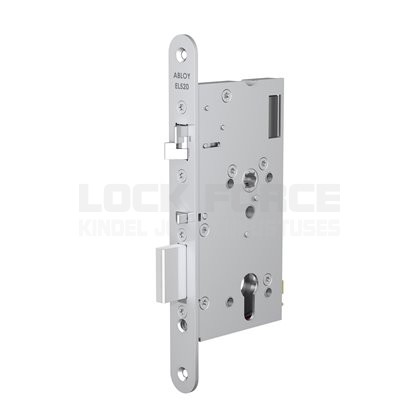

MOTOR LOCK ABLOY EL520
EL520 push&pull function motor lock case for wooden and metal door. Motor locks are best suited in high traffic doors.
Features
- Operating voltage: 12-24 V DC. max current 850 mA norm. 300 mA
- Temperature range: -20 to +60°C

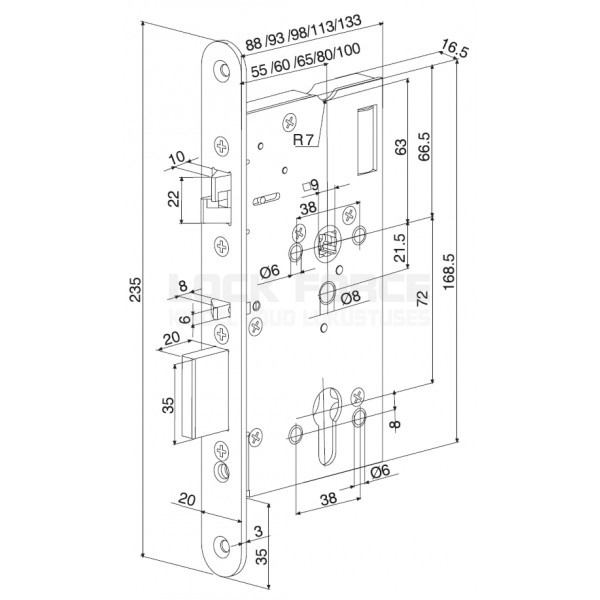

- Backset: 65 mm
- Spindle: 9 mm
- Forend: 24 mm
Function
A pull outside, inside handle or handle and pull: door can be opened by pushing or pulling when the electrical control is on (e.g. timer, reader, push button). Inside handle opens the lock always.
Applications
- Entrance doors, corridor doors
- High traffic exit doors and access controlled doors
- Fire rated doors
- Doors with door automatics
- Business premises
- Hospitals
- Sports stadiums
